AND COMPACT LINKPRINT FB320
AND COMPACT LINKPRINT FB320

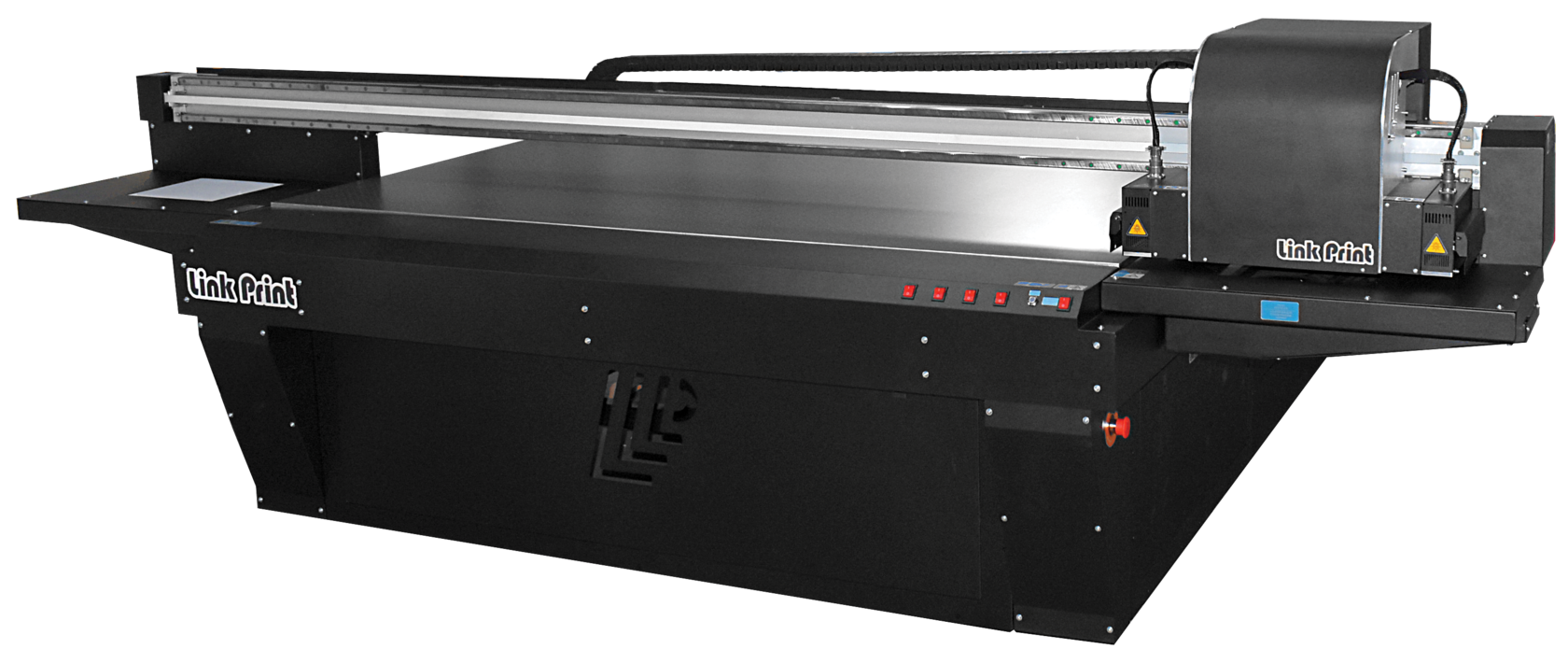

2x3 m flatbed UV printer for long and continuous running at high speed
Color model
- standard CMYK+W+V
- configuration up to 8 colors
- standard CMYK+W+V
- configuration up to 8 colors
6-zone vacuum table
the system has a built-in valve for switching the direction of air flow
the system has a built-in valve for switching the direction of air flow
Reliability
Base - rigid steel frame
Base - rigid steel frame
6-zone vacuum table
the system has a built-in valve for switching the direction of air flow
the system has a built-in valve for switching the direction of air flow
LED-UV air-cooled lamp systems
- low heat generation
- long service life
- reduced energy costs
- environmentally friendly
- low heat generation
- long service life
- reduced energy costs
- environmentally friendly
High productivity
- Ricoh or Konica Minolta print heads
- Up to 18 print heads
- Ricoh or Konica Minolta print heads
- Up to 18 print heads
INTERIOR PRINT QUALITY
Printing on leather, wood, pvc, cardboard, metal, composite and more
VERSATILITY
Online support around the clock by a team of service engineers
24/7 SUPPORT
Print speed in quality mode
up to 120 sqm per hour
up to 120 sqm per hour
HIGH SPEED
The design and technical parameters of the printer can be customized for special applications
Adapted construction
In addition to the standard CMYK + W + V set, primers, fluorescent and any other paints can be used
8 - COLOR MODEL
LINKPINT printers cost no more than their Chinese counterparts and are much more comfortable with delivery and service
AFFORDABLE PRICE
TECHNOLOGY
Software adjustable carriage height allows you to easily print on a variety of sheet materials up to 100 mm thick. The carriage is equipped with shock protection sensors. Carriage lifting height up to 100 mm. To work with PVC and other materials that carry a static charge, an ionizer can be installed on the carriage.
The vacuum cleaning system fully automates the process of cleaning and maintaining the print heads on the printer.
The vacuum cleaning system fully automates the process of cleaning and maintaining the print heads on the printer.
CONVENIENCE OF USE
The movable portal is mounted on two ballscrews on either side of the printer, also all movements are additionally controlled by two high-resolution encoders. The X-axis movement is accurate to 0.02 mm.
RELIABLE MECHANICS
Depending on the application and tasks, the optimal printer configuration can be selected in terms of the number, type and arrangement of printheads. To increase the productivity of the printer, it is possible to install up to 18 printheads, KM1024i or RICOH in 2 or 3 rows.Additional printheads can be installed at any time.
RICOH GEN6 OR KM1024I PRINTHEADS
Provides polymerization of ink during the printing process. It features a low level of heat generation, thus expanding the range of printed materials. LED-UV system is the most environmentally friendly, has a long service life, and reduces energy costs. The power of the UV lamps installed on the printer is 16 W/sm2.
AIR-COOLED UV LAMP SYSTEM
Вакуумный стол имеет 6 вакуумных зон управляемых кранами. Для легкого позиционирования по столу тяжелых листовых материалов, в системе встроен клапан переключения направления потока воздуха для создания воздушной подушки. Стол имеет специальное покрытие, имеющее очень низкую адгезию к УФ краске
VACUUM TABLE
starter ink set
for free
for free
Answer 10 questions to assemble printer for your business tasks
and get free ink set
and get free ink set
video of the printer in action
CONSULTATION and
printer selection
Leave a request for a free consultation and selection of a printer, we will contact you in a few minutes
Main characteristics:
6 -zone vacuum table
White ink circulation
Ink supply system: continuous, with sub-tanks
White ink circulation
Ink supply system: continuous, with sub-tanks
Feed method: Flatbed
Table size: 2050х3200 mm
Printheads: Ricoh / KonicaMinolta
Table size: 2050х3200 mm
Printheads: Ricoh / KonicaMinolta
Printheads:
Variable drop: supported
Head cleaning system: manual or auto
Color scheme: CMYK+White+Vanish+Primer
Head cleaning system: manual or auto
Color scheme: CMYK+White+Vanish+Primer
Minimum configuration: 2 print heads
Maximum configuration: 18 print heads
Drop size: 2.5 pl - 13 pl
Maximum configuration: 18 print heads
Drop size: 2.5 pl - 13 pl
Productivity:
High quality mode: up to 25 sq.m.
Quality mode: up to 120 sq.m
Quality mode: up to 120 sq.m
Print:
Print resolution: 360dpi, 720dpi, 1440dpi, 2880 dpi
Color management: support for ICC profiles
Multi-layer printing
Print in both directions: white on the bottom, white on the top
Color management: support for ICC profiles
Multi-layer printing
Print in both directions: white on the bottom, white on the top
Working conditions:
Network requirement: 50/60 Hz, 220V;
Power: up to 1.5 kW
Power: up to 1.5 kW
Operating temperature: 15-28 C
Recommended humidity: 40-60%
Dust level: compliant with standard office conditions
Recommended humidity: 40-60%
Dust level: compliant with standard office conditions
Software:
Material:
Max size: 2100х3300 mm
Material thickness: 0.1 mm - 350 mm
Max. material weight: up to 150 kg
Material thickness: 0.1 mm - 350 mm
Max. material weight: up to 150 kg
RIP station: ONYX PosterShop
Ethernet or Wi-Fi communication interface
Ethernet or Wi-Fi communication interface
Power supply, power:
Print technology:
UV drying system:
Piezoelectric inkjet printing
LED UV lamps
Item fixation: vacuum
Type of actuators: Servo
Type of actuators: Servo
Material height sensor: optional
Static protection: Ionizer on carriage (optional)
Collision protection: shock sensor on carriage
Static protection: Ionizer on carriage (optional)
Collision protection: shock sensor on carriage
Dimensions: (WxDxH), mm:3800×3510×1300
Weight, kg: 1470
Weight, kg: 1470
